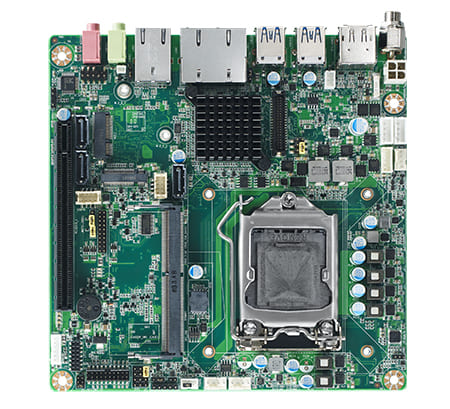

Advantech AIMB-286EF
Intel® Core™ i7/i5/i3 LGA 1151 Mini-ITX with DP++/HDMI/LVDS(eDP), 2 COM, Dual LAN, PCIe x16, M.2, DDR4, DC Input
Downloads
Features
- Supports Intel® 8th/9th Gen Core™ i processor (LGA1151) with Intel H310 chipset
- One 260-pin SO-DIMM up to 32GB DDR4 2666 MHz SDRAM
- Supports dual display of DP++/HDMI/LVDs (or eDP)
- Supports PCIe x16 (Gen 3), 1 M.2 B key & 1 M.2 E key, 4 USB 3.0 & 4 USB 2.0 and 3 SATA III
- Supports 12V DC Input and low profile height
- Supports TPM 1.2 / 2.0 (optional)
- Supports DeviceOn and Embedded Software APIs
